It was replaced by the TCL S405
The TCL US5800 Series UHD LED has an average picture quality for a 4k TV. It has a bit more blur than ideal on fast sequences. The screen of the US5800 also produces harsh reflections that can't get countered by the low TV brightness. The Roku smart platform is great though and the TV operation is user-friendly.
- Great smart platform
- More blur than ideal
- Not suitable for a bright living room
- Average screen uniformity

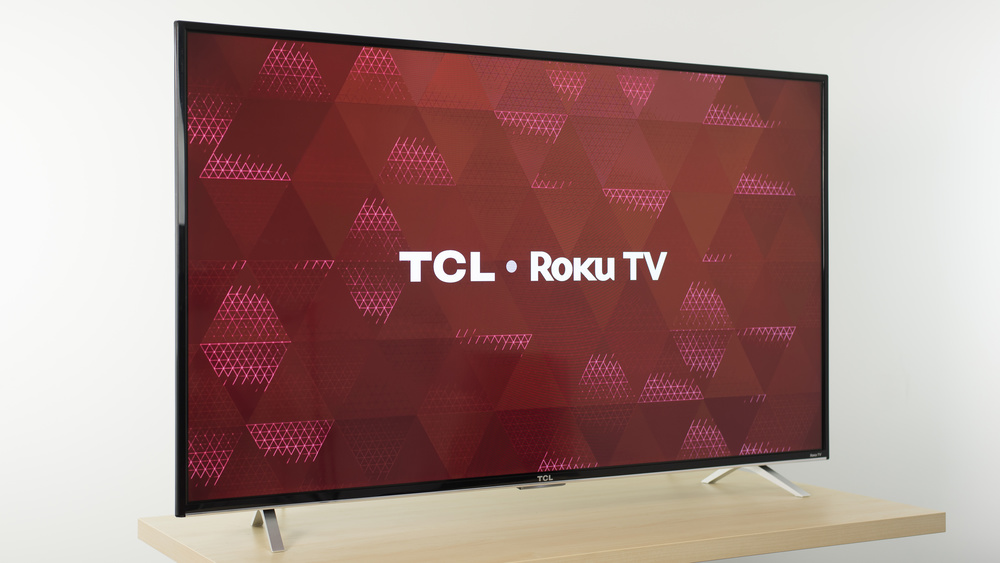

The TCL US5800 is a good looking TV although a thick one. It is mostly made of plastic except for its feet that are made of metal.
- 11% Contrast
- 6% Local Dimming
- 6% SDR Peak Brightness
- 6% HDR Peak Brightness
- 6% Gray Uniformity
- 7% Viewing Angle
- 4% Black Uniformity
- 2% Gradient
- 4% Pre Calibration
- 1% Post Calibration
- 6% 480p Input
- 9% 720p Input
- 11% 1080p Input
- 6% 4k Input
- 4% Color Gamut
- 4% Color Volume
- 1% Image Retention
- 6% Reflections
- 1% 3D

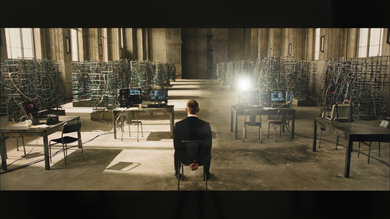

Watching movies on the TCL US5800 is decent. DVDs and blu-rays play smoothly but judder is present in movies from other sources. With high quality content the picture is detailed enough but some low resolution content doesn't exhibit the same performance. Out of the box, the colors of the TCL US5800 are a little off. On the good side, watching dark scenes, even with all the lights off, offers some interesting depth. Unfortunately, the US5800 doesn't support higher end features like HDR, 3D or local dimming.

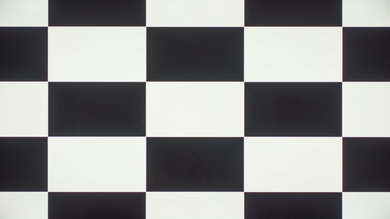

Blacks aren't the best but deep enough to offer a good native contrast ratio which help picture quality in a dark room.
The TCL US5800 isn't bright at all. Brightness kept around the same level for all window sizes.
This TV does not support HDR.

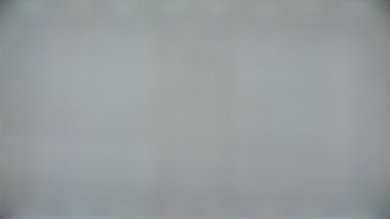

Gray uniformity isn't good. Corners of the screen are darker, banding can be seen both vertically and horizontally (even at a slight angle) and some color tints can be observed.
From the side, the picture of the US5800 deteriorates but not as much as some other LED TVs.
Update: We have changed the methodology of testing. Since this is an old TV which we don't have anymore, we extrapolated the results.

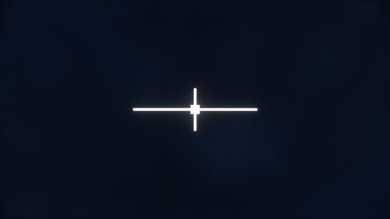

Great as a whole. Faint clouding can be seen when the TV displays a totally black screen but nothing distracting.

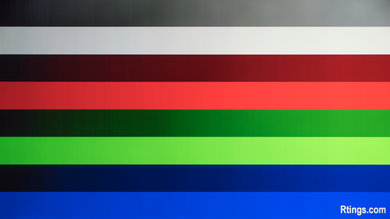

8 bit gradations can be seen in our gradient pattern. Also, some tints of colors are present in the gray gradations. This shouldn't much of a problem in normal content though.

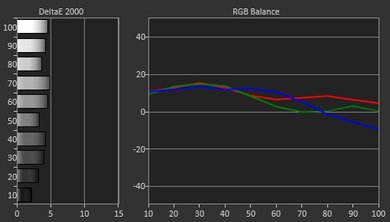

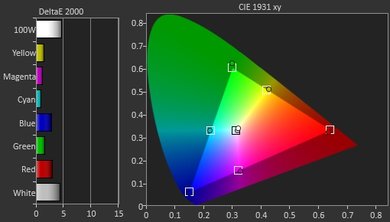

Out of the box, white balance dE is high and gamma is off. Although this results in a picture that is far from perfect, most people won't notice.

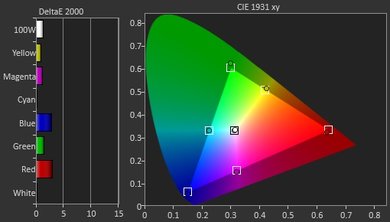

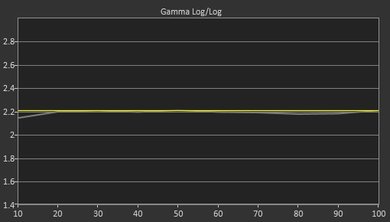

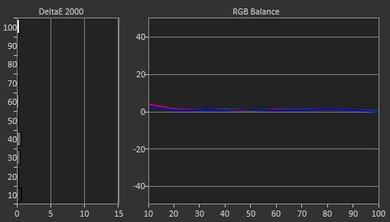

The only possible way to calibrate the TV is with the Roku application. There they offer color space, 2 point and 11 point settings. Calibrating the television was a nightmare, and very time consuming. Some errors couldn't be fixed.

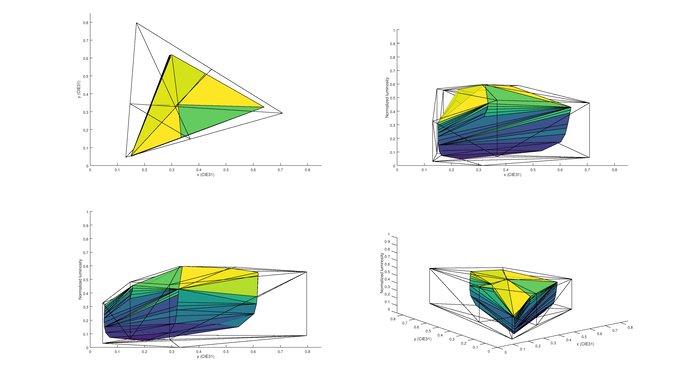

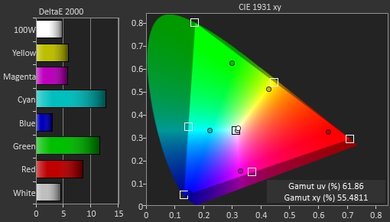

Good enough for Rec.709 only. There is no wide color gamut option on this TV.

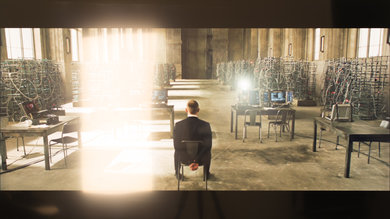

Direct reflections are harsh on the screen of the US5800. Since the TV can't get bright, this will be a problem in moderately lit to bright rooms.
The result of setting 'color temperature' to warm can be found here.
Sports is average on the TCL US5800. Fast moving objects or players appear slightly blurry and screen uniformity issues arise when cameras are panning over playing fields.

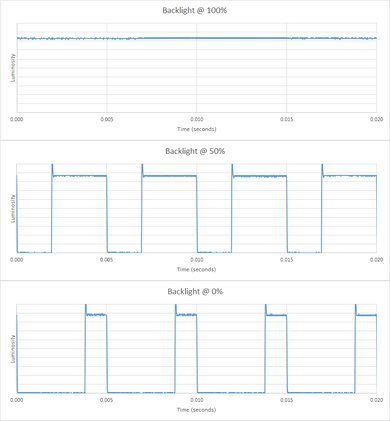

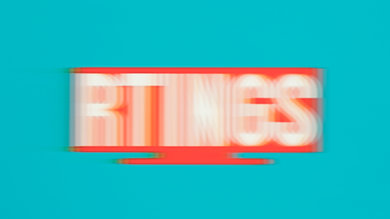

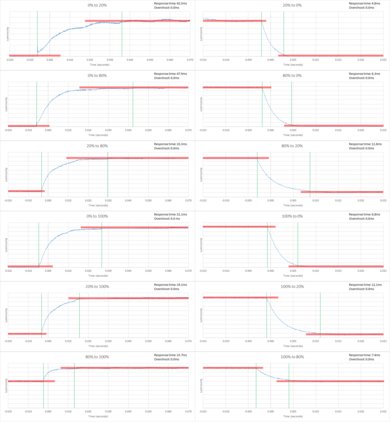

The trail following the logo is a little bit long and has a darker yellow tint. The US5800 has an unusual backlight flickering. The PWM frequency is 200Hz, which isn't a multiple of 60Hz. Visually, it produces a shaking duplication of fast moving objects.
Only movies from 24p sources are completely judder-free. Other sources have constant judder. It might not be an issue for everyone though since most cannot detect judder in movies.
The US5800 doesn't have a motion interpolation feature.
The gaming performance on the TCL US5800 is average. There is some blur for moving objects and average input lag. As a PC monitor, the US5800 covers the basic resolutions.
The 1080p input lag of the US5800 is 46.3ms, which is average. For most gamers this shouldn’t be noticeable. Input lag is the same with and without Game Mode enabled.
- 20% 1080p @ 60Hz @ 4:4:4
- 20% 1080p @ 120Hz
- 20% 4k @ 30Hz @ 4:4:4
- 20% 4k @ 60Hz
- 20% 4k @ 60Hz @ 4:4:4
Looking at the screen from up close you can notice a strange pixel pattern. This only occurs when the 'color temperature' setting is set to warm. You can see the pixel picture here.
Update: From further testing we have concluded that all current TCL TVs that we have reviewed do not display 4:4:4, but 4:2:2. This is due to the TV inputs accepting 4:4:4 but actually displaying 4:2:2. 4:2:2 is better than 4:2:0, but slightly blurrier for text than 4:4:4.
The sound of the TCL US5800 is especially bad. It has a low maximum volume level and distortion is omnipresent. Anyone that cares about sound should invest in an external sound solution like a sound bar.
Note: Sound Quality test for TVs reviewed before 2017 was performed at 75dB, 85dB, and Max SPL. Starting 2017, the target SPL levels have been changed to 70dB, 80dB, and Max dB SPL.

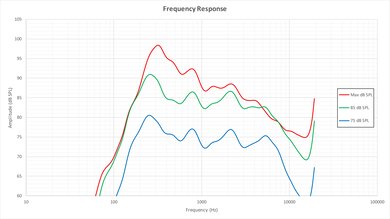

Poor low-end cutoff and maximum loudness. At 160Hz and 87.5dB respectively, these values are not good even for a TV. The frequency response is also below average and pumping may be present at higher volumes.

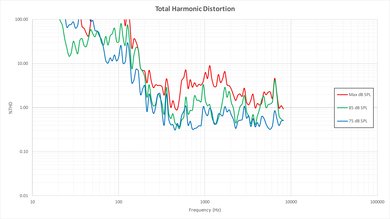

The overall amount of harmonic distortion is elevated, even at lower volumes. At maximum volume, there is a noticeable rise in distortion, but not as bad as some other TVs we have measured.

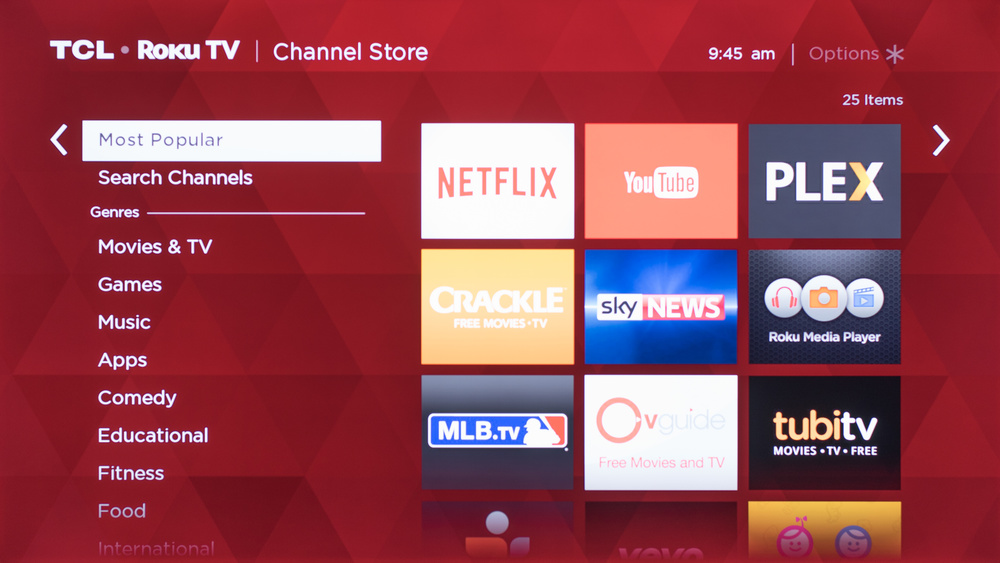

Roku is the smart platform on the TCL US5800 and it delivers great smart features. It has thousands of apps including most of the popular ones. Its interface is quick and the menus and remote are straightforward for anyone to use. The fact that this TV doesn't have a lot of options plays favorably for its user-friendliness. The US5800 also has a lot of inputs which is great.
Differences between Sizes and Variants
We tested the 55" (55US5800). For the most part, we expect our review to be valid for the 65" (65US5800).
If someone comes across a different type of panel or if their TCL US5800 doesn't correspond to our review, let us know and we will update the review.
Compared to other TVs
Although the TCL US5800 has good value for the price, other 4K TVs offer better picture quality and might be worth investing into because of this. Not all TVs are as good when it comes to smart functionalities though.
The Vizio D 4k 2016 is a better TV for sports and video games since it has less motion blur. It also has less reflections on its screen which makes for a better fit in the living room. It isn't as good for low quality content like for watching DVDs though.
The TCL FS3750 might not be a 4k TV but delivers better sports and video games performance with the same Roku smart platform offering. Pick this TV if you sit farther away than about 6 feet from the TV.
The Samsung KU6300 is more expensive but is a better TV. It has a better picture for low quality content like DVDs, can get a lot brighter and is more suitable for video games.
For a 4k TV, the TCL US5800 isn't terrible but still at the bottom of the range. For most usages, 'average' would be the word to summarize its performances. It has more blur than ideal, its colors aren't that good and the fact that the TV can't get bright emphasis its reflections issues. The main strength of the TCL US5800 is really its strong Roku smart platform.
